ELK layout

Introduction¶

Layout nodes and edges of graph by ELK library.

Author: Rex
Method

Live demos¶

Usage¶

Sample code

Install plugin¶

Load minify file¶

Load plugin (minify file) in preload stage

scene.load.scenePlugin('rexgraphplugin', 'https://raw.githubusercontent.com/rexrainbow/phaser3-rex-notes/master/dist/rexgraphplugin.min.js', 'rexGraph', 'rexGraph');

Add graph object

var graph = scene.rexGraph.add.graph(config);

Create node and edge game objects from code or text
```
graph.addNode(...);
graph.addEdge(...);
```
```
scene.rexGraph.buildGraphFromText(graph, config);
```
- It is recommended that using line game object for edge game object

Layout node and edge game objects

await scene.rexGraph.ELKLayout(graph, config);

Import plugin¶

Install rex plugins from npm
```
npm i phaser3-rex-plugins
```

Install plugin in configuration of game

import GraphPlugin from 'phaser3-rex-plugins/plugins/graph-plugin.js';
var config = {
    // ...
    plugins: {
        scene: [{
            key: 'rexGraph',
            plugin: GraphPlugin,
            mapping: 'rexGraph'
        },
        // ...
        ]
    }
    // ...
};
var game = new Phaser.Game(config);

Add graph object

var graph = scene.rexGraph.add.graph(config);

Create node and edge game objects from code or text
```
graph.addNode(...);
graph.addEdge(...);
```
```
scene.rexGraph.buildGraphFromText(graph, config);
```
- It is recommended that using line game object for edge game object

Layout node and edge game objects

await scene.rexGraph.ELKLayout(graph, config);

Import class¶

Install rex plugins from npm
```
npm i phaser3-rex-plugins
```

Import class

import { Graph, /* BuildGraphFromText */, ELKLayout } from 'phaser3-rex-plugins/plugins/graph-components.js';

Add graph object
```
var graph = new Graph(scene, config);
```
Create node and edge game objects from code or text
```
graph.addNode(...);
graph.addEdge(...);
```
```
BuildGraphFromText(graph, config);
```
- It is recommended that using line game object for edge game object
Layout node and edge game objects
```
await ELKLayout(graph, config);
```

Layout node and edge game objects¶

await ELKLayout(graph, {
    onLayoutStart: undefined,
    onLayoutComplete: undefined,

    onLayoutNode: undefined,
    onLayoutEdge: undefined,

    layoutConfig: {
        layoutOptions: {
            // ...
        }
    },

    container: undefined,
    containerPadding: undefined,
    graphOffsetX: 0,
    graphOffsetY: 0,
});

Callbacks:

onLayoutStart : Callback invoked when starting this ELKLayout method. Default value is undefined
```
function(graph) {

}
```
onLayoutComplete : Callback invoked when finishing this ELKLayout method (ELKLayout method is asynchronous). Default value is undefined
```
function(graph) {

}
```
onLayoutNode : Callback invoked when setting position of a node game object. Default value is undefined
```
function(nodeGameObject) {

}
```

onLayoutEdge : Callback invoked when setting path of a node game object. Default value is

function (gameObject, path, sourceGameObject, targetGameObject) {
    if (gameObject.setLine) {
        gameObject.setLine(path);
    }

    if (gameObject.setHeadShape) {
        if (!gameObject.hasOwnProperty('headShapeSave')) {
            gameObject.headShapeSave = gameObject.headShape;
        }

        if (sourceGameObject.$dummy) {
            gameObject.setHeadShape(0);
        } else {
            gameObject.setHeadShape(gameObject.headShapeSave);
        }
    }

    if (gameObject.setTailShape) {
        if (!gameObject.hasOwnProperty('tailShapeSave')) {
            gameObject.tailShapeSave = gameObject.tailShape;
        }

        if (targetGameObject.$dummy) {
            gameObject.setTailShape(0);
        } else {
            gameObject.setTailShape(gameObject.tailShapeSave);
        }
    }
}

gameObject : Assume that edge game object is line game object with 'poly' line type
path : Point {x, y} array
sourceGameObject, targetGameObject : Node game object of this edge

Configuration of elk.layout(...)

layoutConfig : Parameters pass to elk.layout(...) method, suggestion value for creating top-down, orthogonal edge graph :

{
    layoutOptions: {
        'elk.algorithm': 'layered',
        'elk.direction': 'DOWN',
        'elk.edgeRouting': 'ORTHOGONAL',

        'elk.layered.considerModelOrder.strategy': 'NODES_AND_EDGES',
        'elk.layered.considerModelOrder.components': 'MODEL_ORDER',
    },
}

Container:
- container : Put all nodes and edge into a p3-container, adjust node and edge positions to fit the container and update its size.
- containerPadding : Extend size of container.
Graph offset if container is not assigned
- graphOffsetX, graphOffsetY : Graph offset, default is 0, 0, i.e. align graph to (0, 0)

Node or edge parameters¶

Node parameters¶

padding : Space between node and edge

Code

graph.addNode(nodeGameObject, { padding:3 });

Build from text
```
NodeID [padding=3]
```

Layout alignment Assistant¶

Add dummy nodes and invisible edges to group multiple components into a single logical component for improved layer alignment.

Example:

Before alignment :

A -> B -> C -> H -> I
A -> D -> E -> H -> I
A -> F -> * -> G -> I
J -> K -> L -> * -> I
* *> M -> * -> * -> I
O -> P -> Q -> R -> S
T -> U -> Q
V -> W -> X -> R
Y -> Z -> X

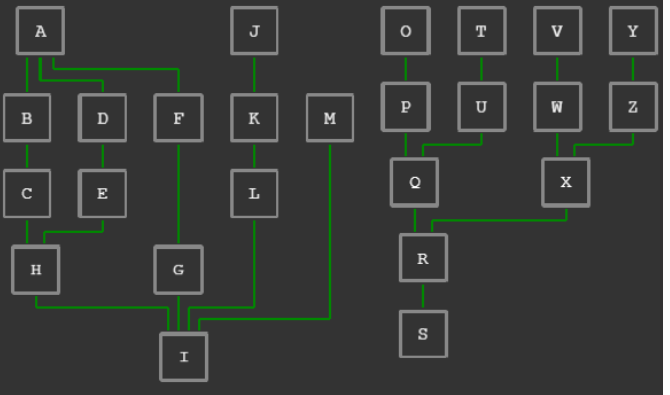

Before-alignment

After alignment :

A -> B -> C -> H -> I
A -> D -> E -> H -> I
A -> F -> * -> G -> I
J -> K -> L -> * -> I
* *> M -> * -> * -> I
O -> P -> Q -> R -> S
T -> U -> Q
V -> W -> X -> R
Y -> Z -> X

/*
For trees alignment,
connect to dummy node with invisible edge
*/
I *> *1
S *> *1

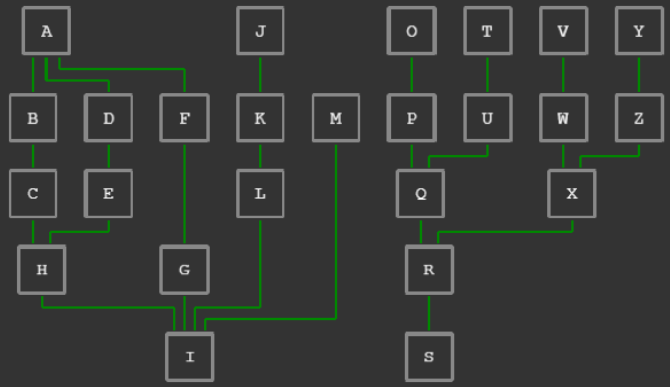

After-alignment

Dummy node¶

graph.addNode(graph.createDummyNode());

Invisible edge¶

graph.addEdge(graph.createInvisibleEdge());
